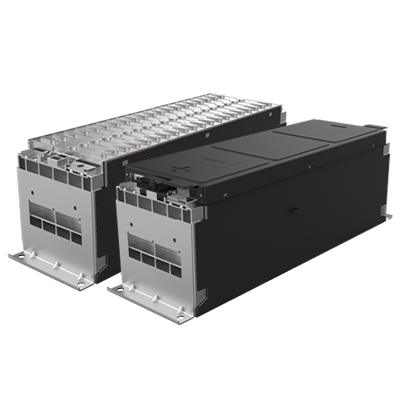

| Model | 17119 | |||
| Arrangement of electric core | 2P8S | 2P9S | 2P10s | 2P15S |
| Battery Chemistry | LFP | |||
| Rated Capacity | 54Ah | |||
| Dimensions(W*D*H) | 361*133*142mm | 395*133*142mm | 429*133*140mm | 600*125*142mm |
| Rated Voltage | 25.6V | 28.8V | 32V | 48V |
| Max Instant Discharge Current | 135A(2.5C) | |||
| Max. Continuous Charge Current | 54A | |||
| Operating Temperature Range | Charge: 0C~55℃ | Discharge: -20C~60℃ | |||
| Cycle Life | 4000 cycles | |||
| Model | 30110 | |
| Arrangement of electric core | 1P8S | 1P16S |
| Rated Voltage | 25.6V | 51.2V |
| Nominal Energy | 2560Wh | 5120Wh |
| Dimensions(W*D*H) | 293.4*318.2*127.5mm | 538.2*318.2*127.5mm |
| Operating Temperature Range | Charge: 0℃~55℃ |Discharge: -20℃~60℃ | |
| Cycle Life | 6000 cycles 70% EOL | |
