Nominal Capacity
12Ah |
Dimension(TxWxH)
18*66*133mm |
Material
LMO+LMFP |
Nominal Voltage
3.7V |
Discharge cut off voltage
2.7V |
Charge cut off voltage
4.2V |
Max discharge current
2C |
Charge method
CC/CV |
Working Temp
Charge 0℃～+55℃ |
|
Cycle Life(1C)
≥1200 |
Weight(Appr.)
315g |
Nominal Capacity
14Ah |
Dimension(TxWxH)
18*66*133mm |
Material
LMO+NCM+LMFP |
Nominal Voltage
3.7V |
Discharge cut off voltage
2.7V |
Charge cut off voltage
4.2V |
Max discharge current
2C |
Charge method
CC/CV |
Working Temp
Charge 0℃～+60℃ |
|
Cycle Life(1C)
≥2200 |
Weight(Appr.)
320g |
Nominal Capacity
20Ah |
Dimension(TxWxH)
15*119*133mm |
Material
LMO+LMFP |
Nominal Voltage
3.7V |
Discharge cut off voltage
2.7V |
Charge cut off voltage
4.2V |
Max discharge current
2C |
Charge method
CC/CV |
Working Temp
Charge 0℃～+55℃ Discharge -20℃～+60℃ |
|
Cycle Life(1C)
≥1500 |
Weight(Appr.)
525g |
Nominal Capacity
24Ah |
Dimension(TxWxH)
15*119*133mm |
Material
LMO+NCM+LMFP |
Nominal Voltage
3.7V |
Discharge cut off voltage
2.7V |
Charge cut off voltage
4.2V |
Max discharge current
2C |
Charge method
CC/CV |
Working Temp
Charge 0℃～+55℃ Discharge -20℃～+60℃ |
|
Cycle Life(1C)
≥2200 |
Weight(Appr.)
530g |
Nominal Capacity
24Ah |
Dimension(TxWxH)
15*119*133mm |
Material
LFP |
Nominal Voltage
3.2V |
Discharge cut off voltage
2.5V |
Charge cut off voltage
3.65V |
Max discharge current
3C |
Charge method
CC/CV |
Working Temp
Charge 0℃～+55℃ Discharge -20℃～+60℃ |
|
Cycle Life(1C)
≥3000 |
Weight(Appr.)
505g |
Nominal Capacity
24Ah |
Dimension(TxWxH)
17*119*133mm |
Material
LMO+LMFP |
Nominal Voltage
3.7V |
Discharge cut off voltage
2.7V |
Charge cut off voltage
4.2V |
Max discharge current
2C |
Charge method
CC/CV |
Working Temp
Charge 0℃～+55℃ Discharge -20℃～+60℃ |
|
Cycle Life(1C)
≥1500 |
Weight(Appr.)
575g |
Nominal Capacity
24Ah |
Dimension(TxWxH)
17*119*133mm |
Material
LFP |
Nominal Voltage
3.2V |
Discharge cut off voltage
2.5V |
Charge cut off voltage
3.65V |
Max discharge current
3C |
Charge method
CC/CV |
Working Temp
Charge 0℃～+55℃ Discharge -20℃～+60℃ |
|
Cycle Life(1C)
≥3000 |
Weight(Appr.)
565g |
Nominal Capacity
30/32Ah |
Dimension(TxWxH)
21*119*132mm |
Material
LMO+LMFP |
Nominal Voltage
3.7V |
Discharge cut off voltage
2.7V |
Charge cut off voltage
4.2V |
Max discharge current
2C |
Charge method
CC/CV |
Working Temp
Charge 0℃～+55℃ Discharge -20℃～+60℃ |
|
Cycle Life(1C)
≥1500 |
Weight(Appr.)
695g |

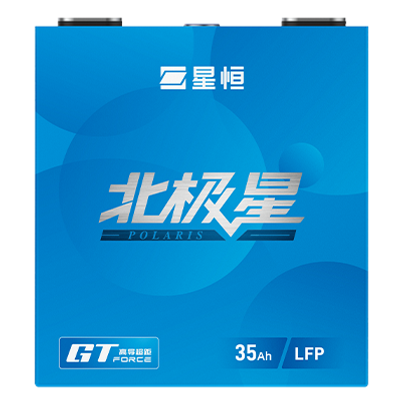

Nominal Capacity
32/35Ah |
Dimension(TxWxH)
21*119*132mm |
Material
LFP |
Nominal Voltage
3.2V |
Discharge cut off voltage
2.5V |
Charge cut off voltage
3.65V |
Max discharge current
3C |
Charge method
CC/CV |
Working Temp
Charge 0℃～+55℃ Discharge -20℃～+60℃ |
|
Cycle Life(1C)
≥3000 |
Weight(Appr.)
666/700g |

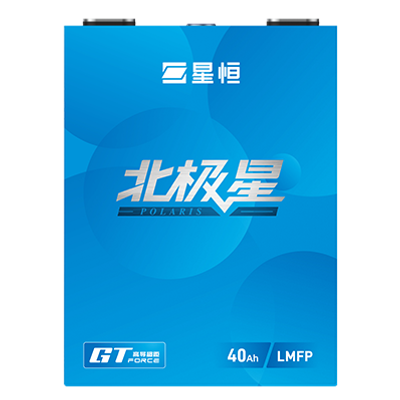

Nominal Capacity
40Ah |
Dimension(TxWxH)
21*119*155mm |
Material
LMO+LMFP |
Nominal Voltage
3.7V |
Discharge cut off voltage
2.7V |
Charge cut off voltage
4.2V |
Max discharge current
2C |
Charge method
CC/CV |
Working Temp
Charge 0℃～+55℃ Discharge -20℃～+60℃ |
|
Cycle Life(1C)
≥1500 |
Weight(Appr.)
880g |
Nominal Capacity
43Ah |
Dimension(TxWxH)
21*119*155mm |
Material
LFP |
Nominal Voltage
3.2V |
Discharge cut off voltage
2.5V |
Charge cut off voltage
3.65V |
Max discharge current
3C |
Charge method
CC/CV |
Working Temp
Charge 0℃～+55℃ Discharge -20℃～+60℃ |
|
Cycle Life(1C)
≥3000 |
Weight(Appr.)
850g |
Nominal Capacity
50Ah |
Dimension(TxWxH)
21*119*178mm |
Material
LMO+LMFP |
Nominal Voltage
3.7V |
Discharge cut off voltage
2.7V |
Charge cut off voltage
4.2V |
Max discharge current
2C |
Charge method
CC/CV |
Working Temp
Charge 0℃～+55℃ Discharge -20℃～+60℃ |
|
Cycle Life(1C)
≥1500 |
Weight(Appr.)
975g |

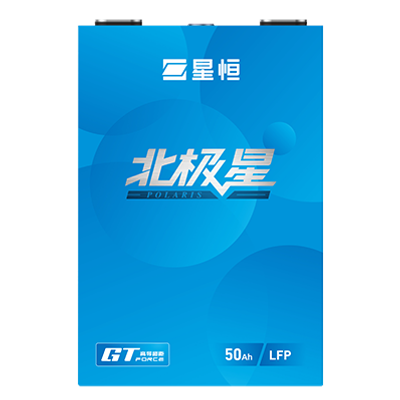

Nominal Capacity
50Ah |
Dimension(TxWxH)
21*119*178mm |
Material
LFP |
Nominal Voltage
3.2V |
Discharge cut off voltage
2.5V |
Charge cut off voltage
3.65V |
Max discharge current
3C |
Charge method
CC/CV |
Working Temp
Charge 0℃～+55℃ Discharge -20℃～+60℃ |
|
Cycle Life(1C)
≥3000 |
Weight(Appr.)
930g |
